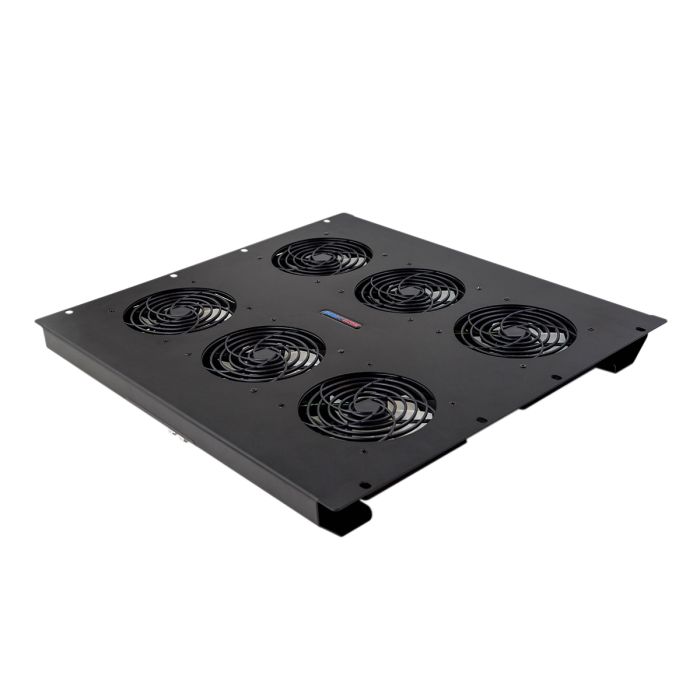

Fan Trays for R4000 / R5000 High-End Server Rack Enclosure

These fan trays have been made for the R4000 / R5000 server rack enclosures. They are designed to be fitted in the 10U Top Service Area to extract the hot air and draw up cool air from the bottom inlets.

Technical Specifications
- Low Noise 22.5dBA (0.3 Sone)
- Up to 444CFM 756m³/h @1,350RPM
- High Static Pressure
- 9 Bladed 120mm Fans
- 12V DC - 750 - 2000mA
- 2 x DC In/Out Sockets
- Temperature Probe Socket (Standard Fixed 40°C (104°F) Sensor
- On/Off with a coloured indicator Rocker Switch
- Suitable World Wide Universal PSU supplied
- Fluid Bearings = 2 Year Limited Warrantee

These Fan Trays can also be Digitally Controlled by our FT-DTC 1U Rack Mountable Thermostatic Controller
