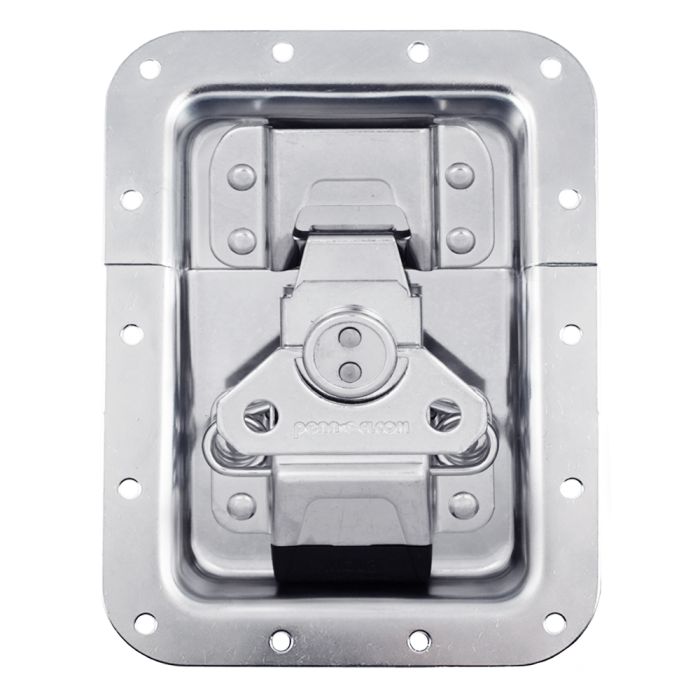

Large MOL®3 Recessed Latches - Split to Hole Centre 19mm

Part No

L944/525MOL3 Series

Width x Height: 127mm x 174mm / 5" x 6.85"

Split to hole center: Top: 17.5mm / 0.7" - Bottom: 19.7mm / 0.8"

Cut-Out: 96mm x 145mm / 3.8" x 5.7"

Backplate: L0526 (Not Included)

Features:

- Innovative Automatic Open/Close System

- Low Profile T-Cam Technology

- Latch Retainer Safety Feature

Maximum Load Capacity: 140kg / 310lb

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Price	Finish	Lockable	Offset	Dish Depth
L944/527/10MOL3 Price: £12.14 £10.12 Finish: Zinc Lockable: No Offset: 27mm Dish Depth: 10mm Drawing:	£12.14 £10.12	Zinc	No	27mm	10mm
L944/527MOL3 Price: £12.14 £10.12 Finish: Zinc Lockable: No Offset: 27mm Dish Depth: 16mm Drawing:	£12.14 £10.12	Zinc	No	27mm	16mm
L944/525MOL3K Price: £15.84 £13.20 Finish: Black Lockable: No Offset: No Dish Depth: 16mm Drawing:	£15.84 £13.20	Black	No	No	16mm
L944/525/10MOL3 Price: £12.14 £10.12 Finish: Zinc Lockable: No Offset: No Dish Depth: 10mm Drawing:	£12.14 £10.12	Zinc	No	No	10mm
L944/525MOL3 Price: £12.14 £10.12 Finish: Zinc Lockable: No Offset: No Dish Depth: 16mm Drawing:	£12.14 £10.12	Zinc	No	No	16mm
